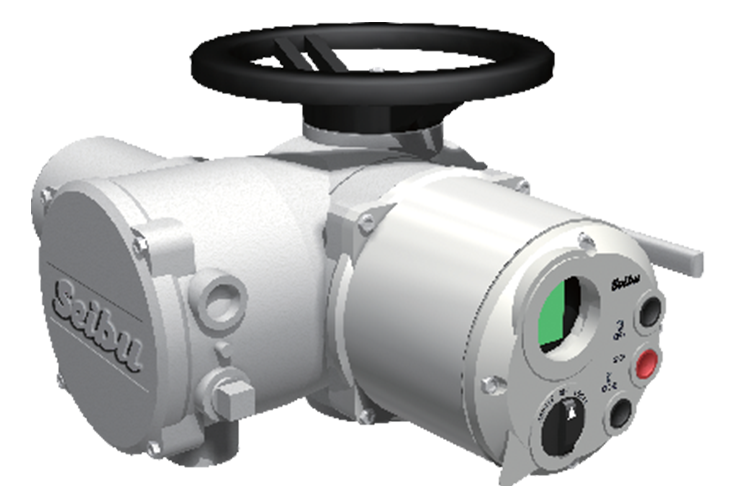

Valve Actuator Multi-Turn Type
Electric Type Manual/Auto Return
Type Semflex®-VM Series
- Various kinds of plants
- Air conditioning of building
- Production system
- For inflow of industrial water
- For inflow around filter bed in water purification plant
- Adjustment of flow of cold water and warm water in local heating and cooling system, etc.
- Factory using communication network
contact us
- Small, lightweight, and compact design. (1/2 or less of mass, compared with our conventional products)
- The standard waterproof structure IP68 and the double-sealed terminal section drastically reduce a failure due to the intrusion of water.
- The valve can be opened or closed just by feeding power.
- A wide variety of controls are available. (Anti-water-hammer operation, valve purge function, torque retry function, etc.)
- Since it has an inverter, opening/closing time can be changed. (Available optionally)
- The 2-wire communication remote operation function (PROFIBUS) can be added easily. (Available optionally)
- Protection Structure IP68(standard)
- Explosionproof structure (Exd II BT4) is supportable.
