Valve Actuator Part-Turn Type

Electric Auto Return Type SRH

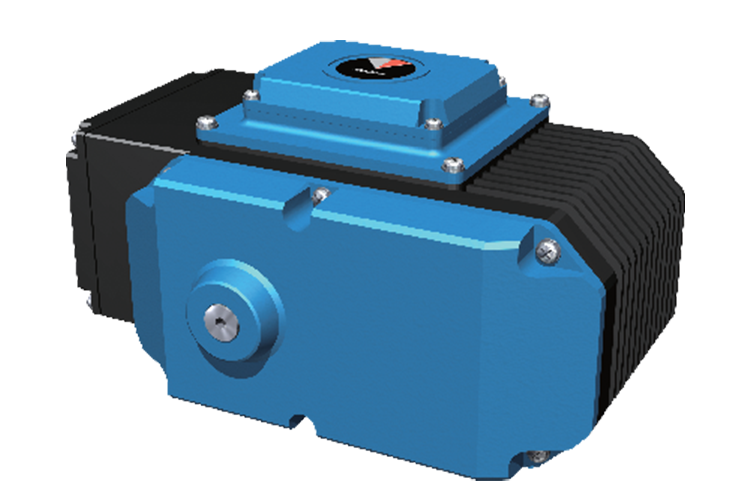

 Small Valve Actuator, Rotatable by 90 Degrees, with Lightweight and Compact Structure, and Ease of Handling This is a small rotary-type valve actuator rotatable by 90 degrees, which is used to control such fluid as water and air. It has a wide range of applications, such as air conditioning of a building, a local heating and cooling system, and a production system.
contact us
  • Aluminum alloy and engineering plastics are used for the main body and the cover respectively, and a combination of worn gear and spur gear has made the whole compact.
  • The terminal room is separate from the switch section and has a large wiring space; therefore, leads can be led from the outside easily.
