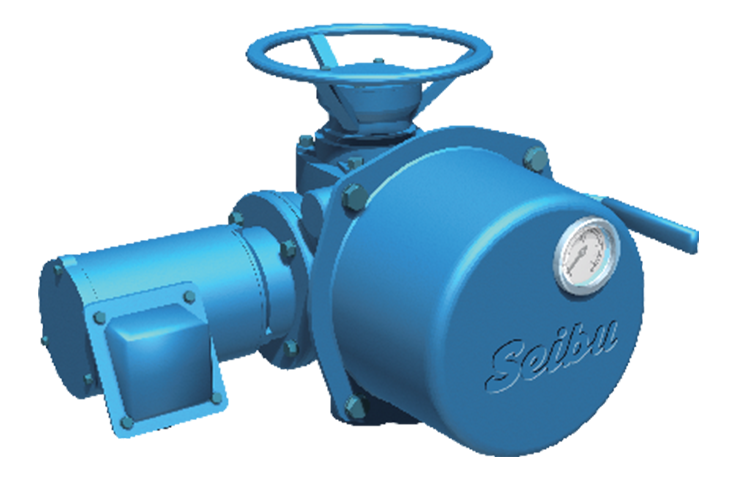

Valve Actuator Multi-Turn Type

Electric Manual/Auto Return
Type LTRH/LTRM Series

 We have thoroughly reduced its size and weight because it is often the case that piping is installed in all directions and it is attached in the very narrow space close to a floor or a side wall. Moreover, also the balance with a small-diameter valve is improved.
contact us
  • We have thoroughly reduced its size and weight because it is often the case that it is attached in the very narrow space.
  • Since the weight is reduced significantly, quake resistance of the piping system is improved greatly.
  • By centralizing electric rooms, all operations, such as leading lines, switching, and operating the push-button unit, can be carried out from one direction.
  • It can be attached to the required point in a free posture, without constraint of piping, a side wall, etc.
  • Protection Structure IP55
